1. Introduction

• We may access a random element by index in Array. However, we might want to restrict the processing order in some cases.
• we introduce two different processing orders, First-in-First-out and Last-in-First-out and its two corresponding linear data structures, Queue and Stack.
• We go through the definition, implementation and built-in functions for each data structure.
• Then, we focus more on the practical applications of these two data structures.
• By completing this card, you should be able to:
  • Understand the principle of the processing orders of FIFO and LIFO
  • Implement these two data structures
  • Be familiar with the built-in queue and stack structure
  • Solve basic queue-related problems, especially BFS(Breadth-Frist Search)
  • Solve basic stack-related problems problems
  • Understand how system stack helps you when you solve problems using DFS(Depth-First Search) and other recursion algorithms

2. Queue: First-in-first-out Data Structure

• The goal of this is to help you
  • Understand the definition of FIFO and queue
  • Be able to implement a queue by yourself
  • Be familiar with the built-in queue structure
  • Use queue to solve simple problems

First-in-first-out Data Structure

• In a FIFO data structure, the first element added to the queue will be processed first.

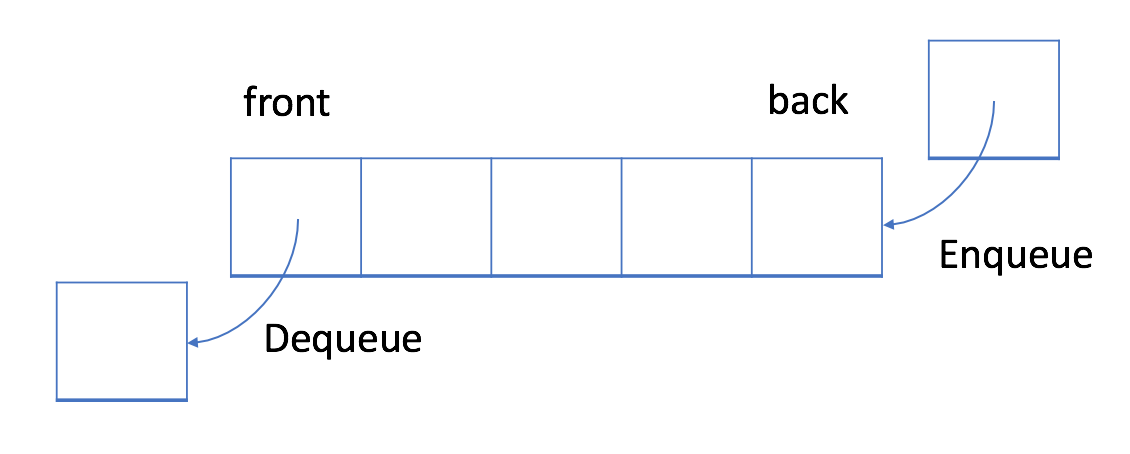

• As shown in the picture above, the queue is a typical FIFO data stucture. The insert operation is also called enqueue(排队) and the new element is always added at the end of the queue.
• The delete operation is called dequeue.
• you are only allowed to remove the first element

Exampe - Queue

1. Enqueue: you can click Enqueue below to see how a new element 6 is added to the queue.

<img src=”https://i.postimg.cc/tTTfwGV3/screen-shot-2018-05-02-at-172840.png” width=”500px”

1. Dequeue: you can click Dequeue below to see which element will be removed.

<img src=”https://i.postimg.cc/zDdWqZHL/screen-shot-2018-05-02-at-175409.png” width=”500px”

Circular Queue

• Previously, we have provided a straightforward but inefficient implementation of queue.
• A more efficient way is to use a circular queue. Specifically, we may use a fixed-size array and two pointers to indicate the starting position and the ending position.
• And the goal is to reuse the wasted storage we mentioned previously.
• Let’s take a look at an example to see how a circular queue works. You should pay attention to the strategy we use to enqueue or dequeue an element

https://leetcode.com/explore/learn/card/queue-stack/228/first-in-first-out-data-structure/1396/

• Review the animation carefully to figure out the strategy we use to check if a queue is empty or full.
• For the next exercise, we will let you try to implement the circular queue by yourself and provide a solution later.

Design Circular Queue

• Design your implementation of the circular queue.
• The circular queue is a linear data structure in which the operations are performed based on FIFO (First In First Out) principle and the last position is connected back to the first position to make a circle.
• It is also called “Ring Buffer”
• One of the benefits of the circular queue is that we can make use of the spaces in front of the queue.
• In a normal queue, once the queue becomes full, we cannot insert the next element even if there is a space in front of the queue.
• But using the circular queue, we can use the space to store new values.
• Your implementation should support following operations:
  • MyCircularQueue(k): Constructor, set the size of the queue to be k.
  • Front: Get the front item from the queue. If the queue is empty, return -1.
  • Rear: Get the last item from the queue. If the queue is empty, return -1.
  • enQueue(value): Insert an element into the circular queue. Return true if the operation is successful.
  • deQueue(): Delete an element from the circular queue. Return true if the operation is successful.
  • isEmpty(): Checks whether the circular queue is empty or not.
  • isFull(): Checks whether the circular queue is full or not.

Example:

MyCircularQueue circularQueue = new MyCircularQueue(3); // set the size to be 3
circularQueue.enQueue(1);  // return true
circularQueue.enQueue(2);  // return true
circularQueue.enQueue(3);  // return true
circularQueue.enQueue(4);  // return false, the queue is full
circularQueue.Rear();  // return 3
circularQueue.isFull();  // return true
circularQueue.deQueue();  // return true
circularQueue.enQueue(4);  // return true
circularQueue.Rear();  // return 4

• Note:
  • All values will be in the range of [0, 1000].
  • The number of operations will be in the range of [1, 1000].
  • Please do not use the built-in Queue library.

C++ implement manually

class MyCircularQueue{
private:
  vector<int> data;
  int head;
  int tail;
  int size;
public:
  // initialize our data structure here. set the size of the queue to be k.
  MyCircularQueue(int k){
    data.resize(k);
    head = -1;
    tail = -1;
    size = k;
  }
  // Insert an element into the circular queue. Return true if the operation is successful.
  bool enQueue(int value){
    if (isFull()){
      return false;
    }
    if (isEmpty()){
      head = 0;
    }
    tail = (tail + 1) % size;
    data[tail] = value;
    return true;
  }
  bool deQueue(){
    if (isEmpty()){
      return false;
    }
    if (head == tail){
      head = -1;
      tail = -1;
      return true;
    }
    head = (head + 1 ) % size;
    return true;
  }

  // get the front item from the queue.

  int Front(){
    if (isEmpty()){
      return -1;
    }
    return data[head];
  }
  int Rear(){
    if (isEmpty()){
      return -1;
    }
    return data[tail];
  }

  /** Checks whether the circular queue is empty or not. */
  bool isEmpty() {
      return head == -1;
  }
  /** Checks whether the circular queue is full or not. */
  bool isFull() {
      return ((tail + 1) % size) == head;
  }
}

Queue - Usage

Queue - Usage(Library)

#include <iostream>

int main() {
    // 1. Initialize a queue.
    queue<int> q;
    // 2. Push new element.
    q.push(5);
    q.push(13);
    q.push(8);
    q.push(6);
    // 3. Check if queue is empty.
    if (q.empty()) {
        cout << "Queue is empty!" << endl;
        return 0;
    }
    // 4. Pop an element.
    q.pop();
    // 5. Get the first element.
    cout << "The first element is: " << q.front() << endl;
    // 6. Get the last element.
    cout << "The last element is: " << q.back() << endl;
    // 7. Get the size of the queue.
    cout << "The size is: " << q.size() << endl;
}

Moving Average from Data stream

• Given a stream of integers and a window size, calculate the moving average of all integers in the sliding window.

example

MovingAverage m = new MovingAverage(3);
m.next(1) = 1
m.next(10) = (1 + 10) / 2
m.next(3) = (1 + 10 + 3) / 3
m.next(5) = (10 + 3 + 5) / 3

C++

class MovingAverage {
public:
    // Initialize your data structure here.
    double runningTotal;
    unsigned int windowSize;
    std::queue<int> buffer;

    MovingAverage(unsigned int inputSize) {
//         initialize value
        runningTotal = 0.0;
        windowSize = inputSize;
    }

    double next(int inputValue) {
// check if buffer is full
        if (buffer.size() == windowSize)
        {
//             subtract front value from running total
            runningTotal -= buffer.front();
//             delete value from front of std::queue
            buffer.pop();
        }
//         add new value
        buffer.push(inputValue);
//         update running total
        runningTotal += inputValue;
//         calculate average
        return static_cast<double>(runningTotal / buffer.size());
    }
};

/**
 * Your MovingAverage object will be instantiated and called as such:
 * MovingAverage* obj = new MovingAverage(size);
 * double param_1 = obj->next(val);
 */

static_cast

• static_cast<바꾸려고 하는="" 타입="">(대상);
• static_cast<new_type<(expression)
• 실수와 정수, 열거형과 정수형, 실수와 실수 사이의 변환을 허용

Reference

https://leetcode.com/
