1. Gradient Methods Introduction

we consider a class of search methods for real-valued functions on $R^n$
we use terms like level sets, normal vectors, tangent vectors, and so on
Recall that a level set of a function f:$R^n$ -> R is the set of points x satisfying f(x) = c for some constant c.
simple and intuitive
every iteration is inexpensive
does not require second derivatives
extensions: nonsmooth optimization, combining with duality splitting, coordinate descent, alternating direction, stochastic, online learning
suitable for large-scale problem, parallelization

2. Geometric interpretation of gradients and gradient descent

∇f($x_0$),if it is not zero, is orthogonal to the tangent of the level set curves of f passing $x_0$ on the level set f(x) = c, point outward(点向外)
Thus, the direction of maximum rate of increase of a real-valued differentiable function at a point is orthogonal to the level set of the function through that point.
In other words, the gradient acts in such a direction that for a given small displacement, the function f increases more in the direction of the gradient than in any other direction
To prove this statement, recall that <∇f(x),d>, IIdII = 1, is the rate of increase of f in the direction d at the point x By the Cauchy-Schwarz inequality,

Thus, the direction in which ∇f(x) points the direction of maximum rate of increase of f at x.
The direction in which —∇f(x) points is the direction of maximum rate of decrease of f at x.
Hence, the direction of negative gradient is a good direction to search if we want to find a function minimizer

We refer to the above as a gradient descent algorithm (or simply a gradient algorithm).
The gradient varies as the search proceeds, tending to zero as we approach the minimizer.
We have the option of either taking very small steps and re-evaluating the gradient at every step, or we can take large steps each time.
The first approach results in a laborious method of reaching the minimizer, whereas the second approach may result in a more zigzag path to the minimizer.

The advantage of the second approach is a possibly fewer number of the gradient evaluations.
Among many different methods that use the above philosophy(思想体系) the most popular is the method of steepest descent
Gradient methods are simple to implement and often perform well.

Small stepsizes: iterations are more likely converge, but it might requires more iteration and thus evaluations of ∇f
Large step sizes: better use of ∇f(x) and it may reduce the total number of iterations, but it can cause oversmoothing and zig-zags which lead to divergent iterations
Choice of stepsizes: fixed:k constant; 1D line search (backtracking, exact, Barzilai-Borwein with nonmonotone line search)

Also known as gradient descent with exact line search
The method of steepest descent is a gradient algorithm where the step size $α_k$ is chosen to achieve the maximum amount of decrease of the objective function at each individual step.
Stepsize $α_k$ is determined by

For quadratic program, $α_k$ has closed form.
For problem with inexpensive evaluation values but expensive gradient evaluations
To summarize, the steepest descent algorithm proceeds as follows: at each step, starting from the point $x^k$, we conduct a line search in the direction -∇f($x^k$) until a minimizer, x^(k+1),is found.

The method of steepest descent is an example of an iterative algorithm.
This means that the algorithm generates a sequence of points, each calculated on the basis of the points preceding it.

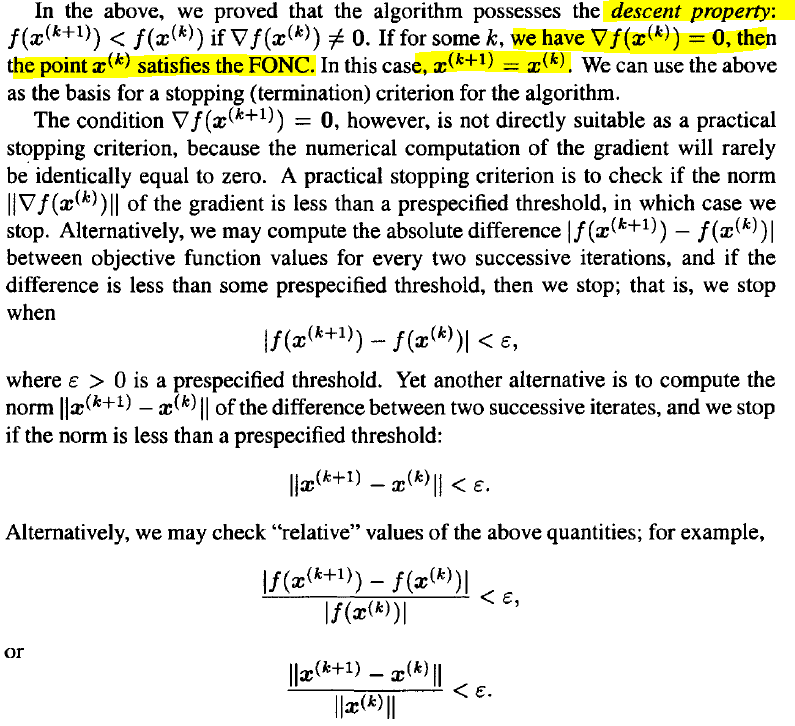

The method is a descent method because as each new point is generated by the algorithm, the corresponding value of the objective function decreases in value (i.e., the algorithm possesses the descent property).
We say that an iterative algorithm is globally convergent if for any arbitrary starting point the algorithm is guaranteed to generate a sequence of points converging to a point that satisfies the FONC for a minimizer.
When the algorithm is not globally convergent, it may still generate a sequence that converges to a point satisfying the FONC, provided the initial point is sufficiently close to the point.
In this case, we say that the algorithm is locally convergent.
How close to a solution point we need to start for the algorithm to converge depends on the local convergence properties of the algorithm.

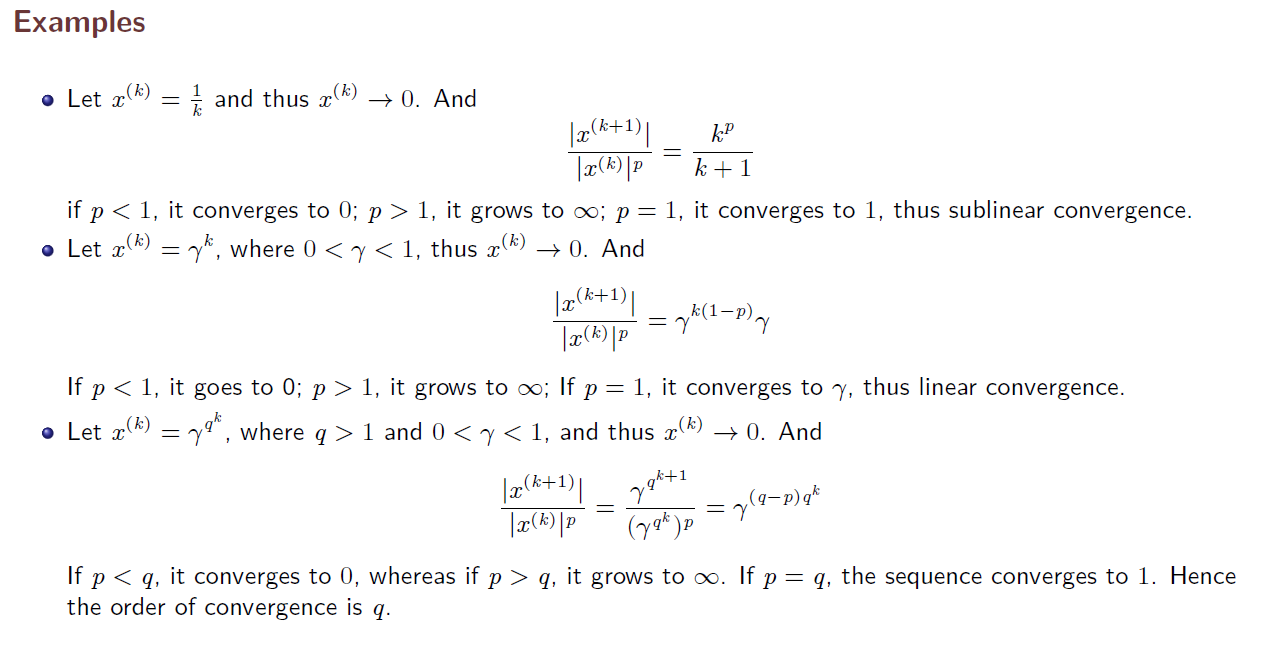

related issue of interest pertaining to a given locally or globally convergent algorithm is the rate of convergence; that is, how fast the algorithm converges to a solution point.
