1. Native(本地的) Solution to Tic-Tac-Toe

• Small set of rules to ensure we never lose
• we enumerate(列举) the rule of Tic-Tac-Toe. but we won’t. still consider what they might be( Ex, if board is empty and it’s our turn, place our piece in the center or corner)(Ex2, if opponent has 2 piece in a row, block the 3rd postion so they don’t win)(Ex3, if we have 2 piece in a row, add a 3rd so we can win the game)
• Code would like this

  if(...):
  {...}
  else if (...):
  {...}
  else if (...):
  {...}


• Goes against the whole idea of ML
• We want one algorithm that can generalize(概括) to many problem(E.g neural network can classify pictures of animals, can also classify music)
• An agent made up of it statements will never be able to do anything other than just play tic-tac-toe(Agent only doing tic-tac-toe)
• Important: we have a model for how the game works. we know everything about tic-tac-toe
• We Know what state yields the highest reward(any state where we have 3 pieces in a row)
• i.e. by doing some action, we know the next state is given the current state(predict)
• Seems Trivial(不重要的), but not always the case

Model

• the idea of having a model of the environment will come into play later.
• some algorithms we’ll learn will require us to have a model, like tic-tac-toe
• other algorithms won’t require us to know anything, we’ll just explore the world and consume information as we go along

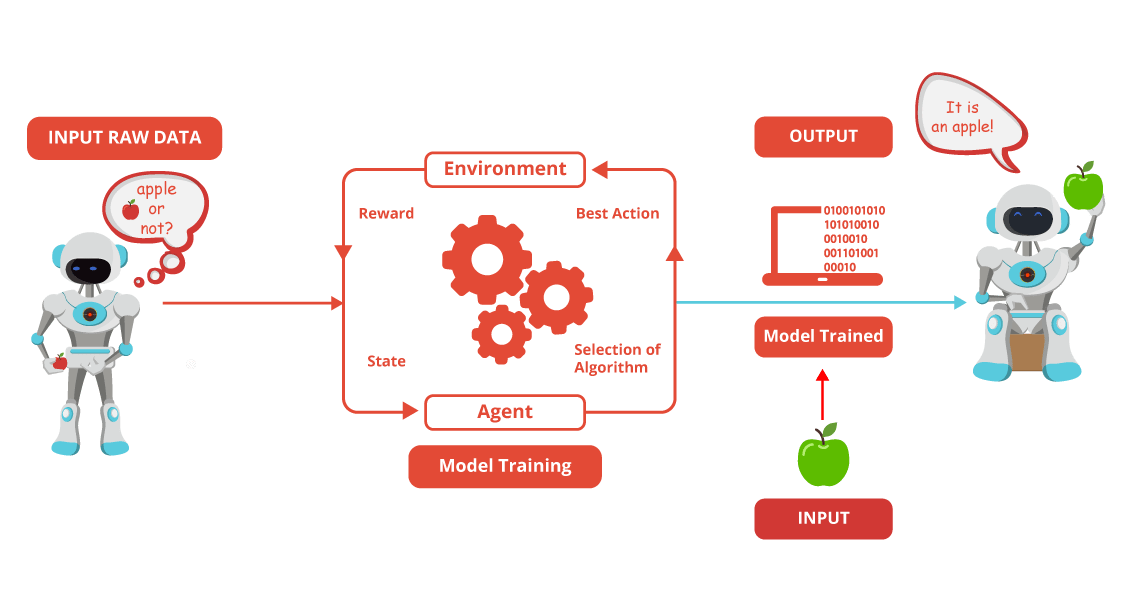

2. Components of a RL systems

State

• Note that State involves only what the agent can sense, not everything about the environment(Ex. Vacuum robot in Australia won’t be affected by something happening in india)

Actions and Rewards

• Actions：
  • Things Agent can do that will affect its state. in tic-tac-toe, that’s placing a piece on the board(like Player)
  • Preforming an action always brings us to the next state, which also comes with a possible reward.
• Rewards：
  • Rewards tell us “how good” our actions was, not whether it was a correct/incorrect action
  • doesn’t tell us the best/Worst action
  • it’s just a number
  • rewards we’ve gotten over the course of our existence doesn’t necessarily represent possible rewards we could get in the future（E.g Search a bad part of state space, hit local max of 10 pts, but global max is 1000pts)
  • Agent Doesn’t know that.
  • Much like life as an animal/Human Being
  • Rewards are only meaningful relative to each other

Funny Notation

• S(t),A(t) -> R(t+1),A(t+1)
• sometimes represented as the 4-tuples: (s,a,r,s’)
• oddly, the “prime” symbol doesn’t strictly mean “at the t+1”
• Instead:
  • s’= state we go to when doing “a” from state “s”
  • r = reward get when we do “a” while in state “s”

Episode

• Episode represents one run of the game(Ex. start tic-tac-toe with empty board)
• As soon as one player gets 3 pieces in a row, that’s the end of the episode
• our RL agent will learn across many episodes(Ex. after playing 1000,10000 or 100000 episodes, we can possibly have trained an intelligent agent)
• . # episodes we use to train is a hyperparameter
• playing the game tic-tac-toe is an episode task because we play it again and again
• Different from a continuous task which never ends
• when is the end of an episode?
• Certain states in the state space tell us when the episode is over.
• There are states from which more action can be taken
• They are called Terminal States
• For Tic-Tac_toe:
  • one player gets 3 in a row
  • Board is full(draw)

3. Other Games(Cart-pole/inverted pendulum/Groundhog Day)

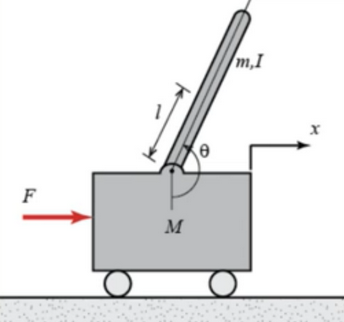

• Control systems: Inverted pendulum
• RL : Cart-Pole
• Unstable system
• Episode starts which pole vertical, soon falls
• Agent: Move to Keep the pole within certain angle.
• Terminal : any angle past the point of no return
• Angle requires continuous state space
• infinite number of states
• being able to learn from multiple episode is like the move Groundhog day
• Main Character wakes up and lives through the same day, everyday
• Allows him to get better and better at making the most out of the day
• RL agent may suck at first, but will gradually learn with each passing episode. each episode is a fresh start

4. Summary

• what do we learn so far?
• Agent
• environment
• State, action, reward
• Episodes
• Terminal States

Reference:

Artificial Intelligence Reinforcement Learning

Advance AI : Deep-Reinforcement Learning

Cutting-Edge Deep-Reinforcement Learning
