Multi-Agent path finding(MAPF)

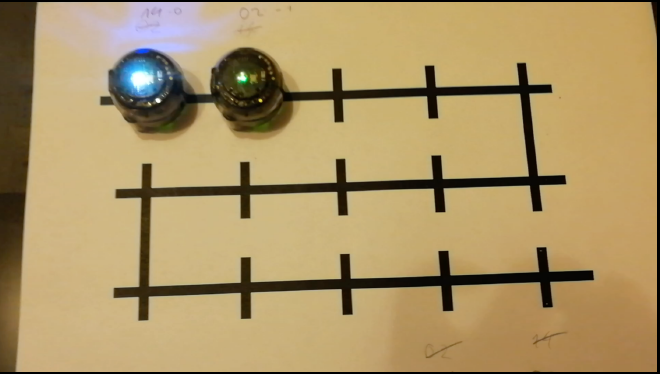

• Multi-Agent(many robot) play to find the target position and move
• MAPF problem: Find a collision-free plan(path) for each agent
• Another name we called it : Cooperative path finding(CPF), Multi-robot path planning, pebble(鹅卵石) motion

1) Introduction to MAPF

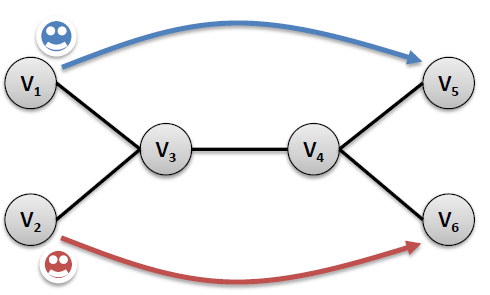

• a graph (directed or undirected)
• a set of agents(robot), each agent is assigned to two locations(nodes) in the graph(start, destination)
• Each agent can perform either move(to a neighbouring node) or wait(in the same node) actions

Typical Assumption: all move and wait actions have identical durations(plans for agents are synchronized)

• Plan is a sequence of actions for the agent leading from its start location to its destination
  • the length of plan(for an agent) is defined by the time when the agent reaches its destination and does not leave it anymore.
• Find Plans for all agents such that the plans do not collide in time and space (no two agents are at the same location at the same time)
• some necessary conditions for plan existence:
  • no two agents are at the same start node
  • no two agents share the same destination node(unless an agent disappears when reaching its destination)
  • the number of agents is strictly smaller than the number of nodes
• agent at $v_i$ cannot perform move $v_j$ at the same time when agent at $v_j$ perform move $v_i$
• Agents may swap position. but agents use the same edges at the same time, swap is not allowed
• Agent can approach node that is currently occupied but will be free before arrival(Agent at $v_i$ cannot perform move $v_j$ if there is another agent at $v_j$)
• if any agent is delayed then trains may cause collision during execution
• to prevent such collisions we may introduce more space between agents

K-robustness

• An agent can visit a node, if that node has not been occupied in recent k steps.
• 1-robustness covers both no-swap and no-train constraints (1번밖에 못 거치는것)

Other constraints

• No Plan(path) has a cycle
• No Two plans(paths) visit the same location
• waiting is not allowed
• some specific locations must be visited

How to Measure Quality of plans?

There are two typical criteria(to minimize):

• Makespan
  • distance between the start time of the first agent and the complete time of the last agent(아무개 에이전트의 시작과 아무개 에이전트의 마지막 동작)
  • maximum of lengths of plans(end times)
• Sum of costs(SOC)
  • Sum of lengths of plans(end times)
• Optimal single agent path finding is tractable(易处理的)
  • e.g. Dijkstra’s algorithm
• Sub-optimal Multi-Agent path finding(with two free unoccupied nodes) is tractable
  • e.g algorithm Push and Rotate
• MARF, where agents have joint goal nodes(it does not matter which agent reaches which goal) is tractable
  • reduction to min-cost flow problem
• Optimal(Makespan,SOC) multi-agent path finding is NP-HARD

Solving approaches

1. Search-Based Techniques
   • state-space search(A*)
     • state = location of agents at nodes
     • transition = performing one action for each agent
   • Conflict-based search
2. ** Reduction-based Techniques
   • Translate the problem to another formalism(形式主义)
     • SAT/CSP/ASP …

2. Search-Based Solvers

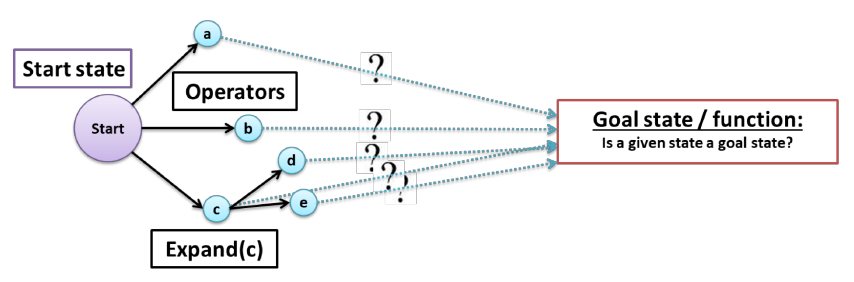

• Search is a General Problem solving technique
• To expand or not expand, this is the question
• Why do we need SEARCH for MAPF? Because it is Finding an optimal solution to hundreds of agents
• this is classical application of Search
• Solving Multi-Agent Path Finding with Search
• From A* to prioritized planners
• From prioritized(按重要性排列) planners back to A*

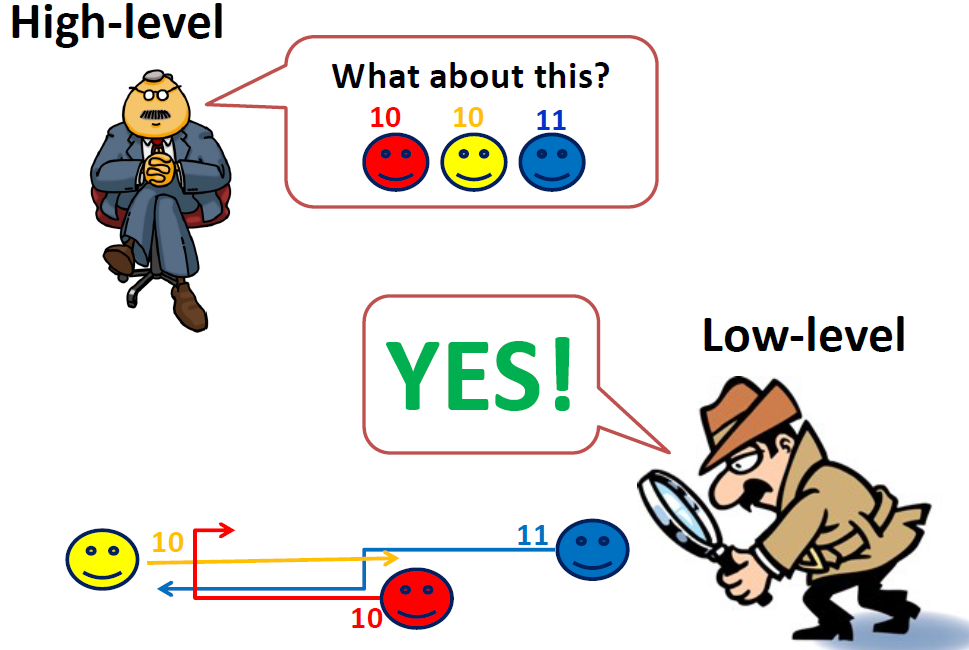

• The Increasing Cost tree search(ICTS)
• The Conflict-Based Search(CBS) framework
• Approximately optimal search-based solvers

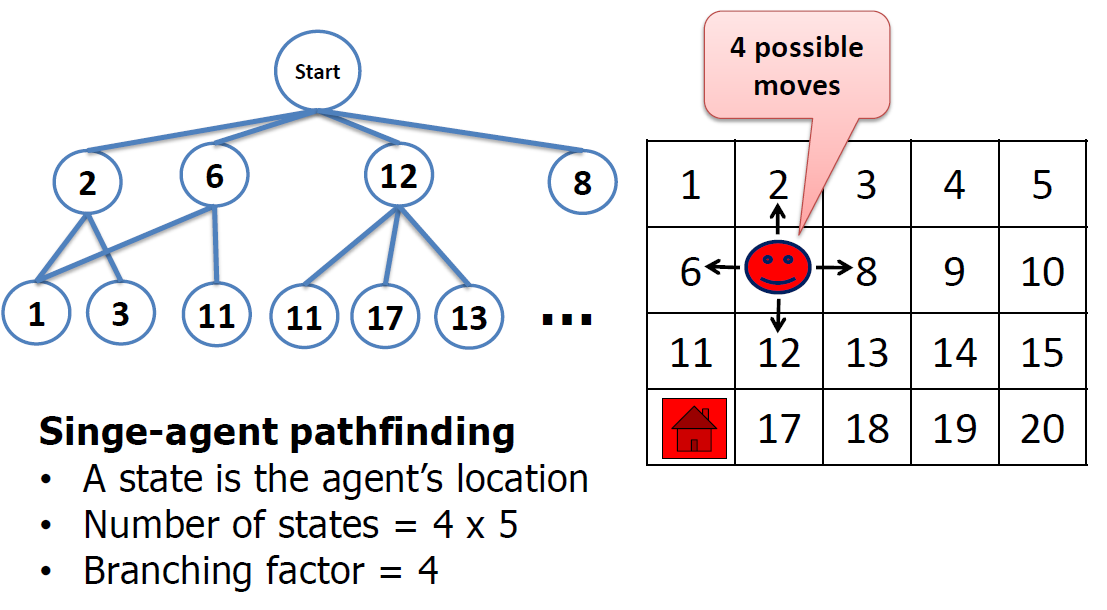

• Single Agent Search Problem Properties
  • Number of state = ? (it will be 4 )
  • Branching factor = ? (4)
• Two Agent Search Problem Properties

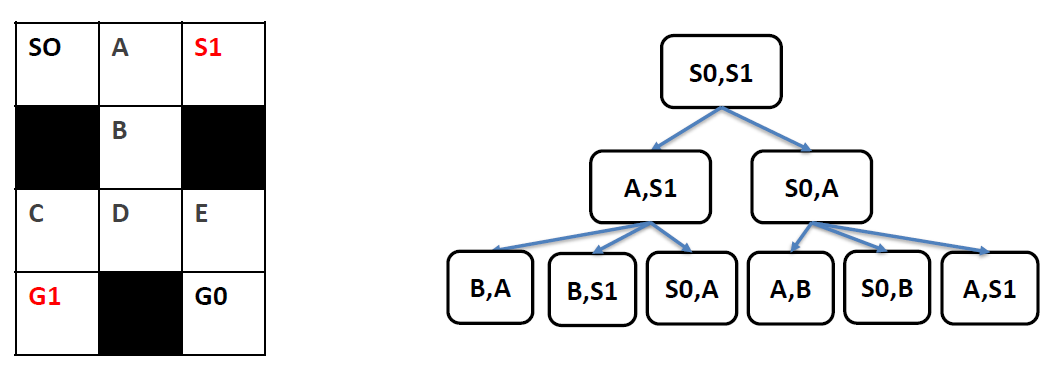

  • Number of States = ? ($20^2$)
  • Branching factor = ? ($5^2$)

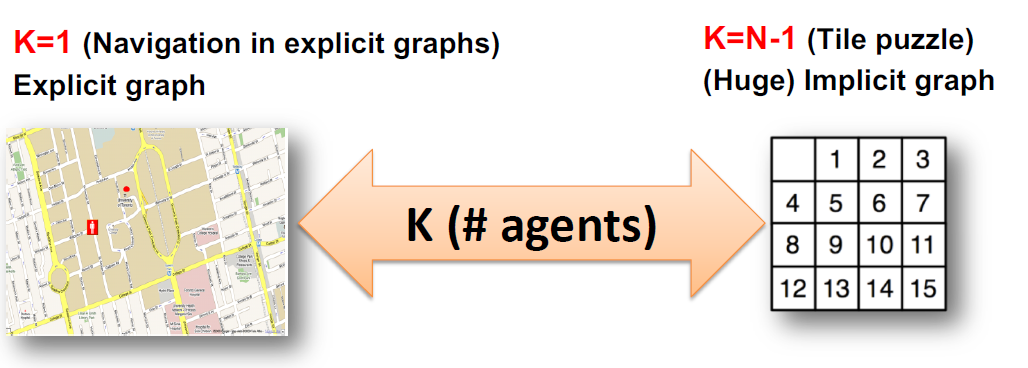

• then, What about K Agents?
  • Number of States = ($20^k$)
  • Branching factor = ($5^k$)
• IT IS VERY HARD PROBLEM
• SO Key Idea: Plan for each agent seperately
• Challenge: Maintaining soundness, completeness, and optimality

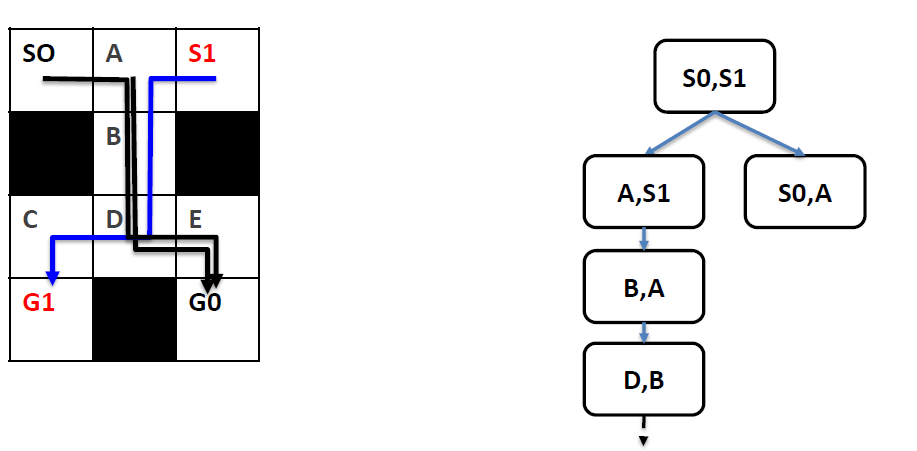

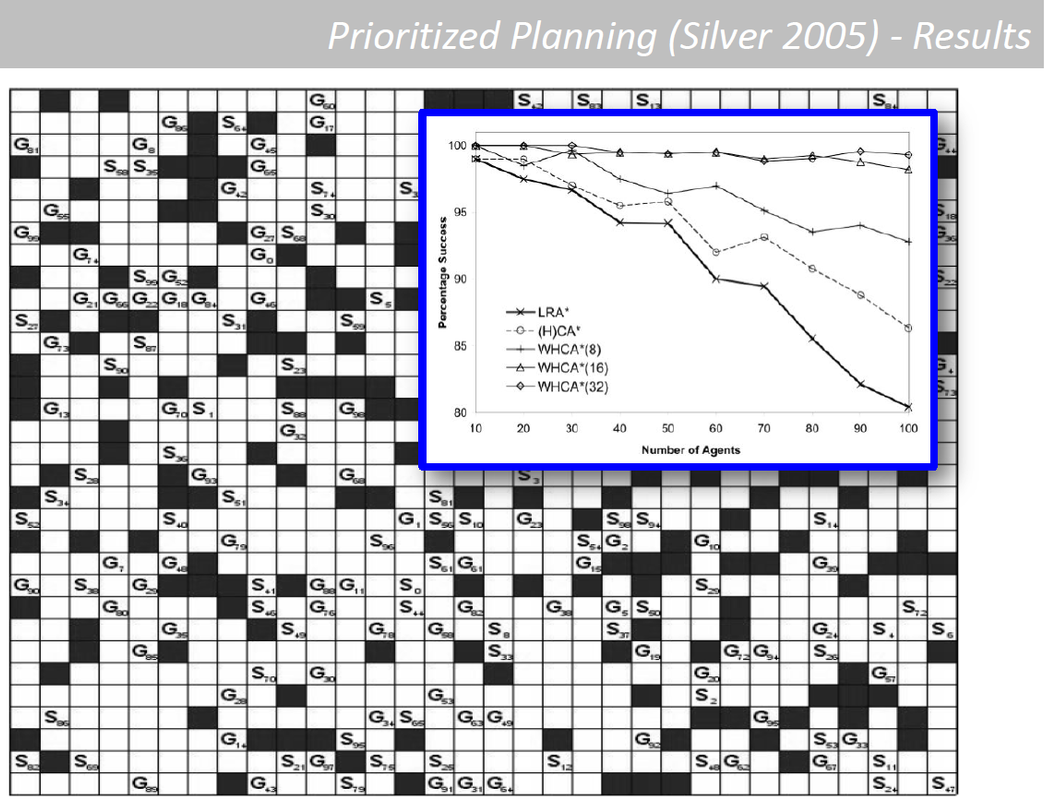

Prioritized Planning (Silver 2005) Analysis: First Agent

Prioritized Planning (Silver 2005) Analysis: Second Agent

• Complexity?
  • Polynomial in the grid size and max time
• Soundness?
  • Yes
• Complete? Optimal?
  • No
• Smart Agent Prioritization
  • conflict oriented WHCA*[Bnaya and Felner ‘14]
  • Re-prioritization and safe intervals [Andreychuk and Yakovlev ‘18]
• Integrate planning and execution
  • Windowed Hierarchical CA* [Silver ‘06]

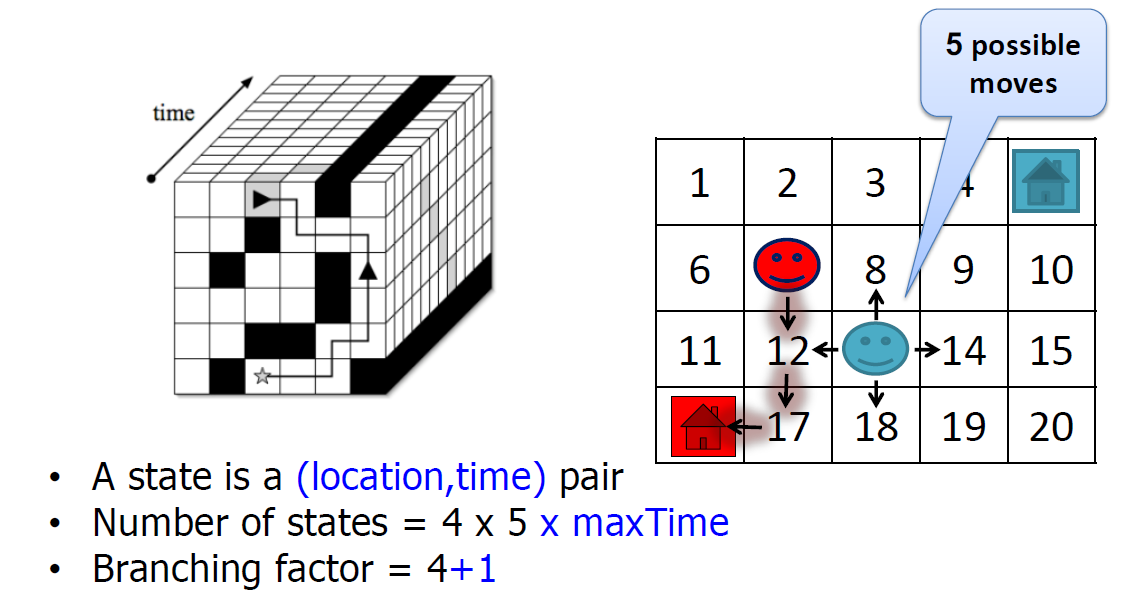

• High-level idea : reservation-based planning (ex) Number of states = 4 x 5 x maxTime)
• FAST, requires almost no coordination
  • but incomplete and not optimal

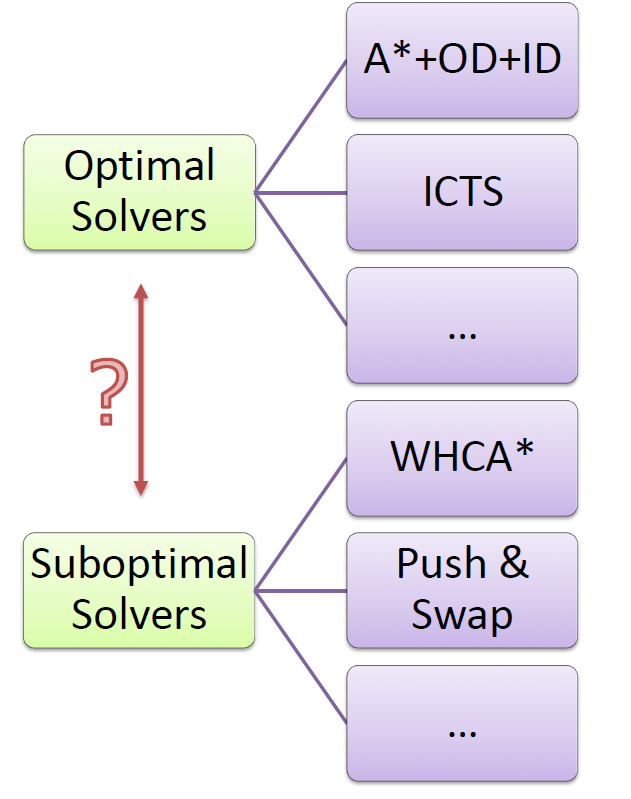

    Search based solver overview

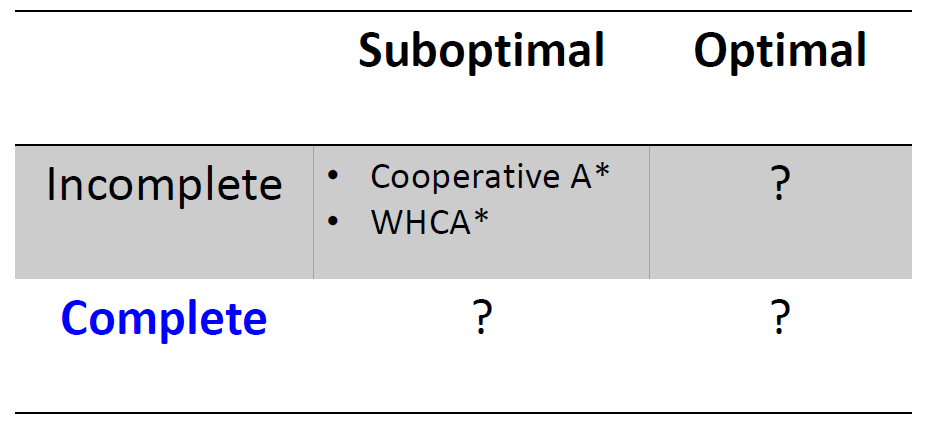

• Can MARF algorithm be Complete and efficient?

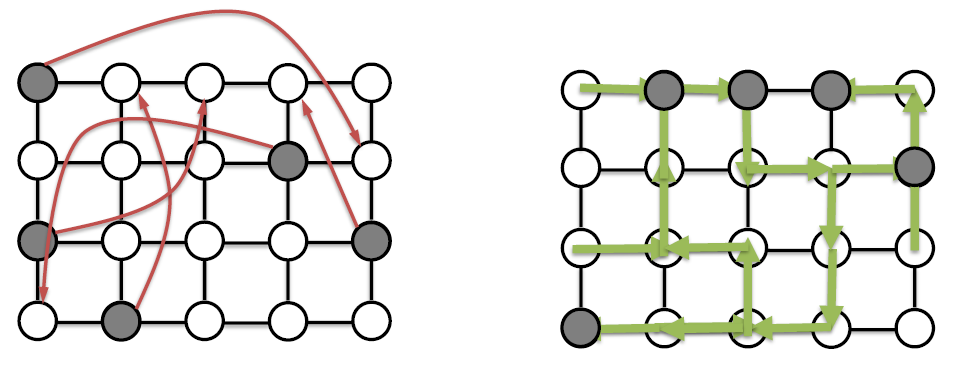

MAPF as a puzzle

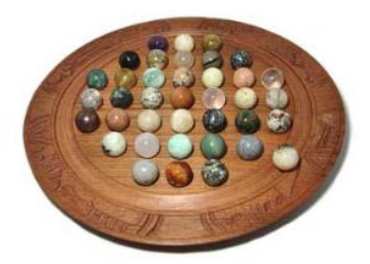

• MAPF is highly related to pebble motion problems
  • Each agent is a pebble(조약돌)
  • Need to move each pebble to its goal
  • cannot put two pebbles in one hole
• Pebble Motion can be solved Polynomial
  • but far from optimally
  • complex formulation
• Similar approaches
  • slidable(滑动) Multi-Agent Path Planning[Wang & Botea, IJCAI, 2009]
  • Push and Swap [Luna & Bekris, IJCAI, 2011]
    • Parallel push and swap [Sajid, Luna, and Bekris, SoCS 2012]
    • Push and Rotate [de Wilde et al. AAMAS 2013]
  • Tree-based agent swapping strategy [Khorshid at el. SOCS, 2011]

Examples

Search based solver Summary

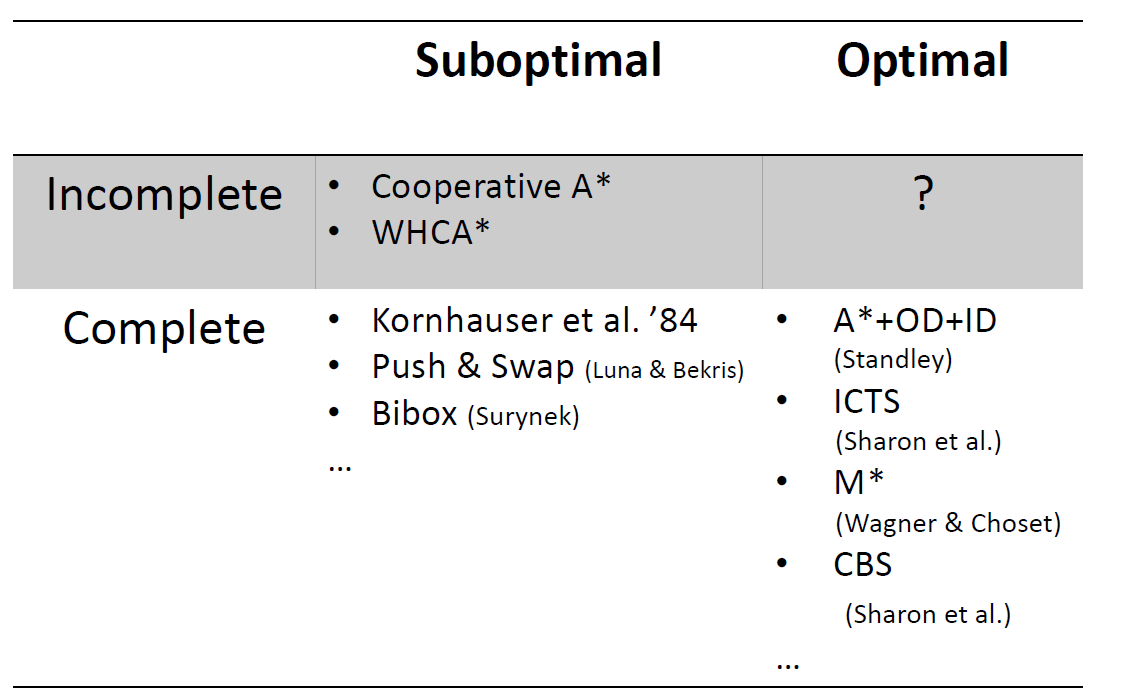

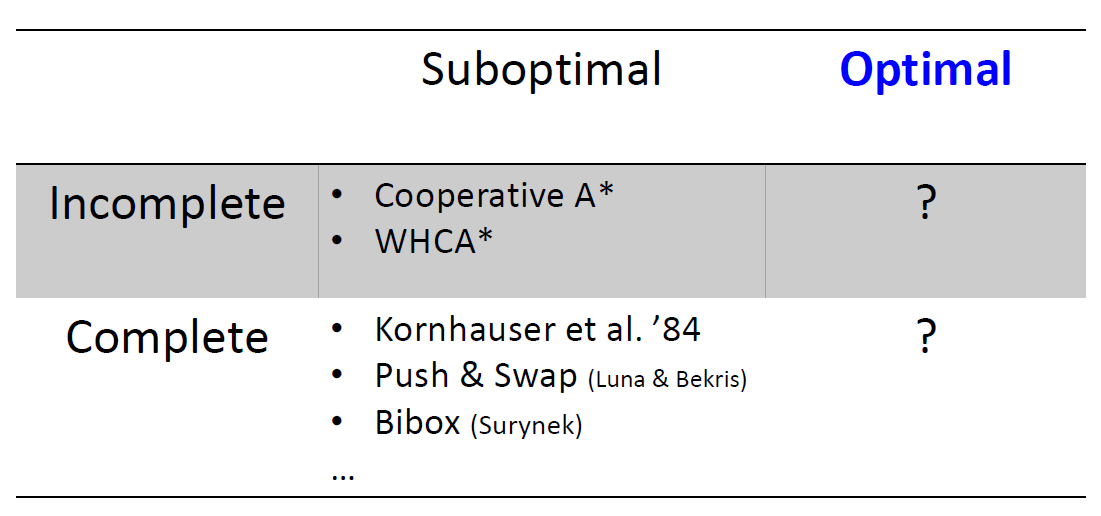

Can a MAPF algorithm be complete and efficient and optimal?

On the Complexity of Optimal Parallel Cooperative Path-Finding, Surynek 2015 Planning Optimal Paths for Multiple Robots on Graphs, Yu and LaValle, 2013

From Tiles to Agents

• Can we adpat technique from these extreme cases? answer is YES(invent some new techniques also(optimal MAPF))

1. Searching the k-agent search space
   • A*+OD+ID [Standley ‘10]
   • EPEA* [Felner ‘X, Goldenberg ‘Y]
   • M* [Wagner & Choset ‘Z]
2. Other search-based approaches
   • ICTS [Sharon et al ‘13]
   • CBS [Sharon et al ’15]

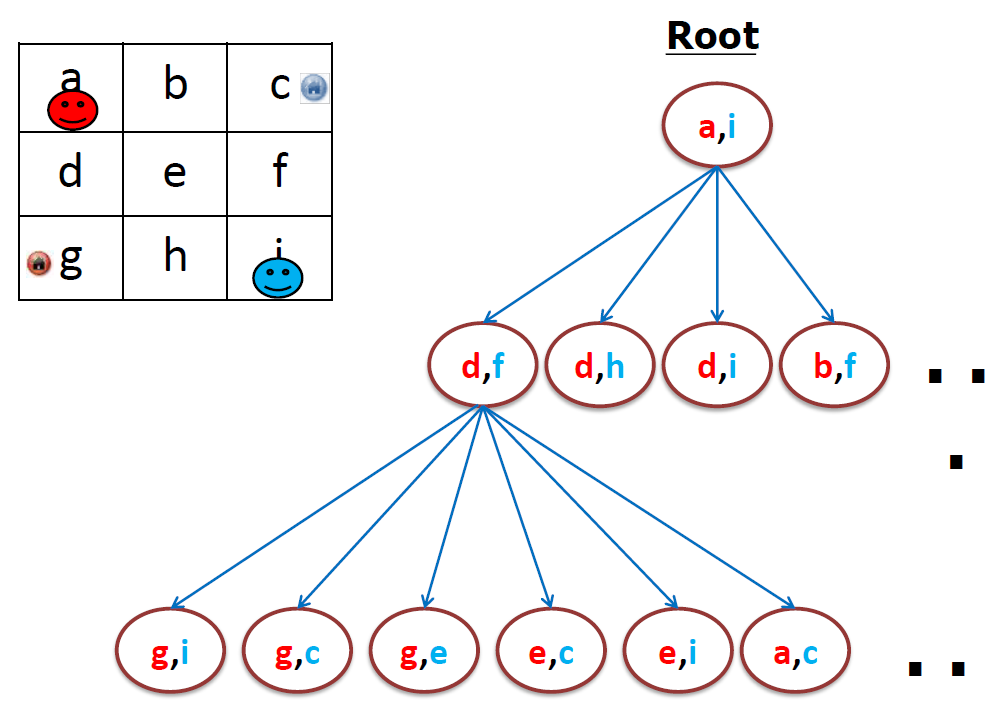

Optimal MARF with A*

• A* expands nodes
• A* gain efficiency by choosing which node to expand

  What is the complexity of expanding a single node in MARF with 20 agents?

$5^20$ = 95,367,431,640,625

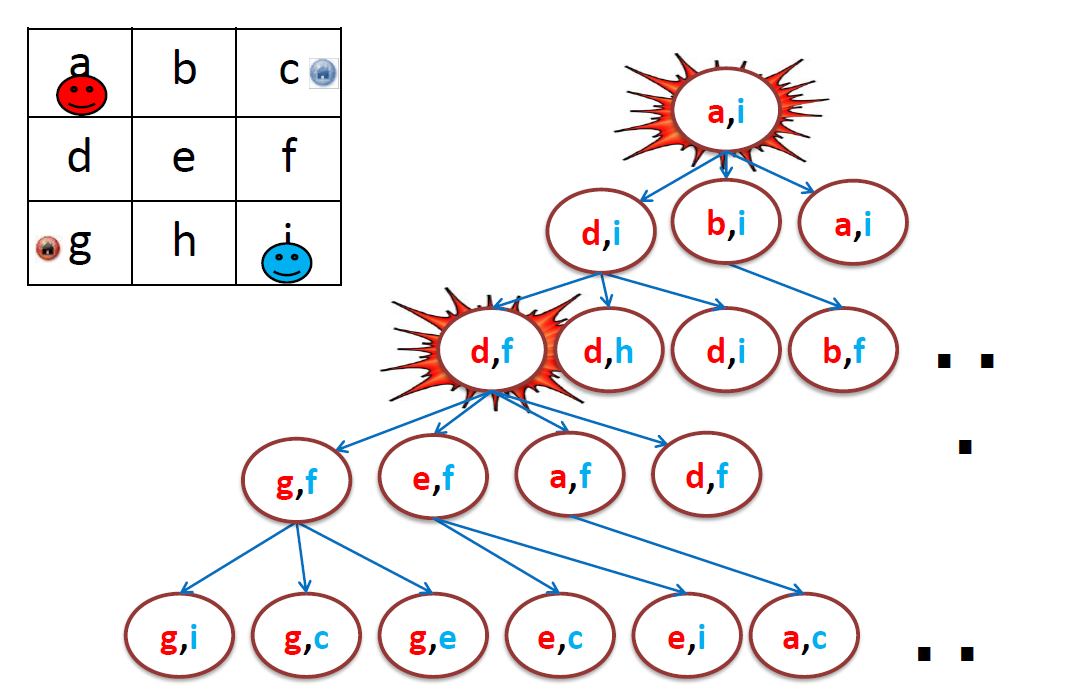

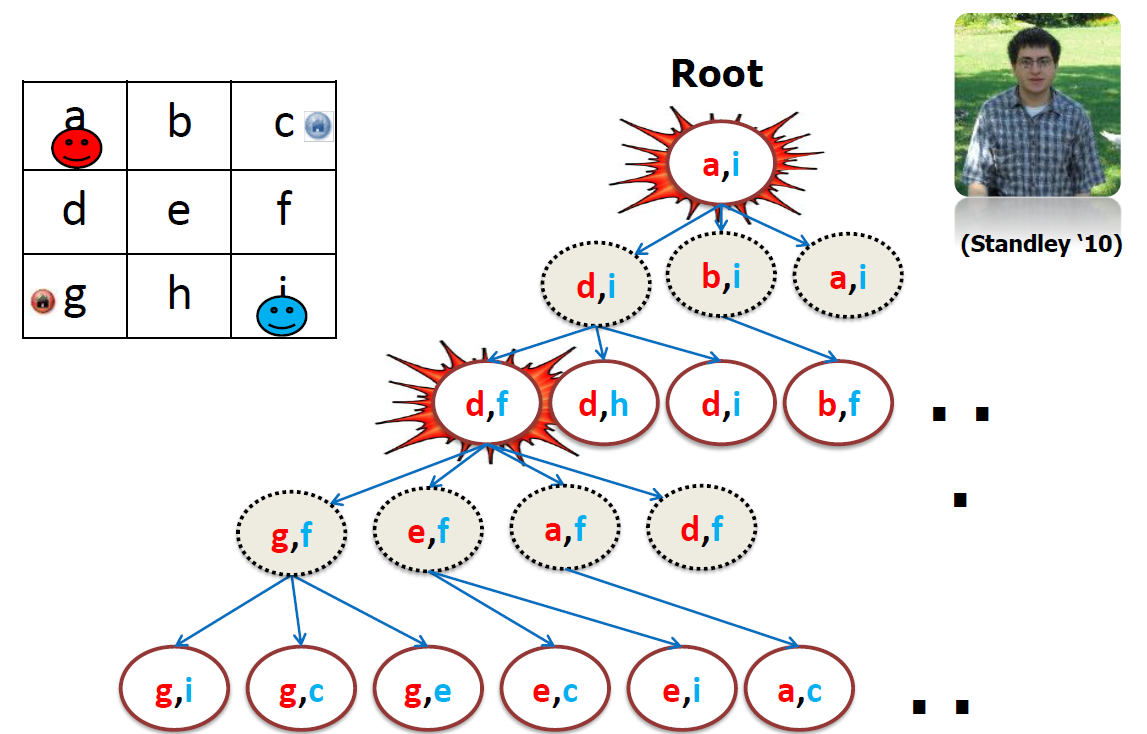

Search Tree Growth with Operator Decomposition

• Pros
  • Branching factor is reduced to 5(= single agent)
  • with a perfect heuristic can solve the problem
• Cons
  • Solution is deeper by a factor of k
  • More nodes may be expanded, due to intermediates

Enhanced Partial Expansion A*

Independence Detection

• Simple Independence Detection
  • Solve optimally each agent separately
  • while some agents conflict
    • 1. Merge conflicting agents to one group
    • 1. solve optimally new group

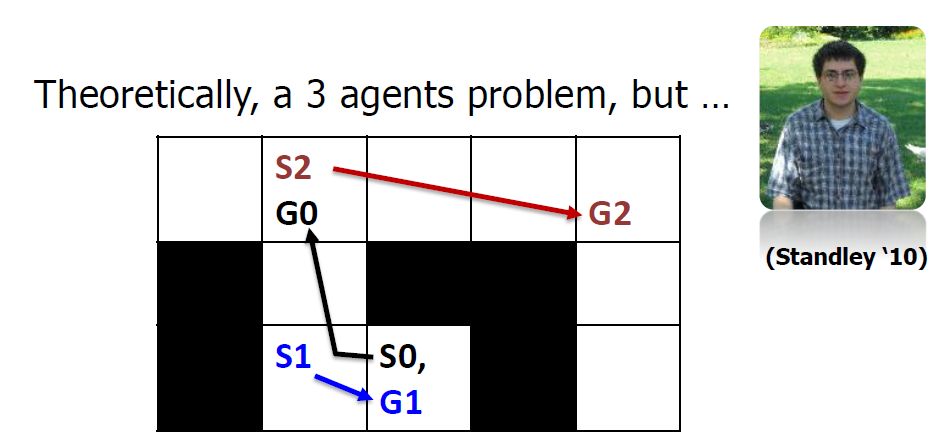

• Independence Detection
  • Solve optimally each agent separately
  • While some agents conflict
    • 1. Try to avoid conflict, with the same cost
    • 1. Merge conflicting agents to one group
    • 1. Solve optimally new group

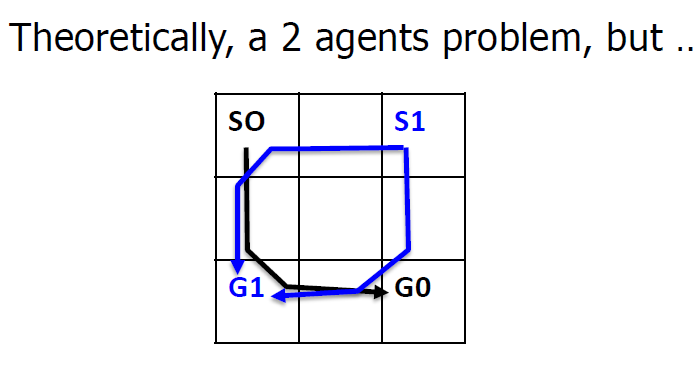

• but what if we have an environment like that

M* (Wagner & Choset ‘11,’14)

• Find optimal path for each agent individually
• Start the search. Generate only nodes on optimal paths
• If conflict occurs – backtrack and consider all ignored actions

Recursive M* (Wagner & Choset ‘11,’14)

• Recursive M*
  • Find optimal path for each agent individually
  • Start the search. Generate only nodes on optimal paths
  • If conflict occurs – backtrack and consider all ignored actions
    • Apply M* recursively after backtracking
• but problem is :
• joint path up to bottleneck can be long

Other Search-based approaches(ICTS,CBS)

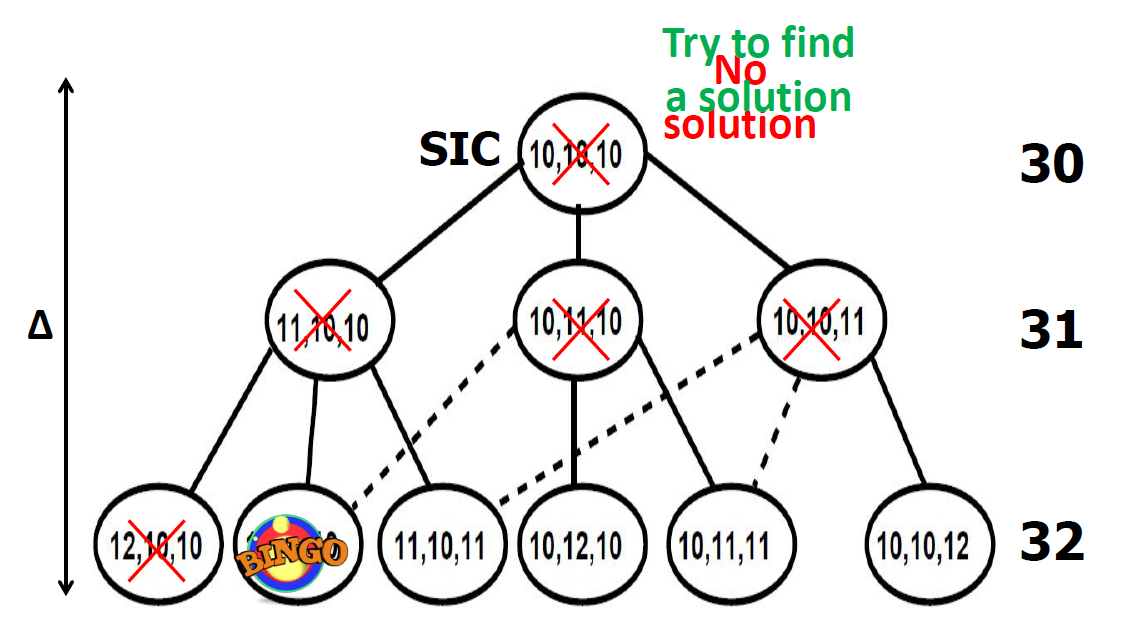

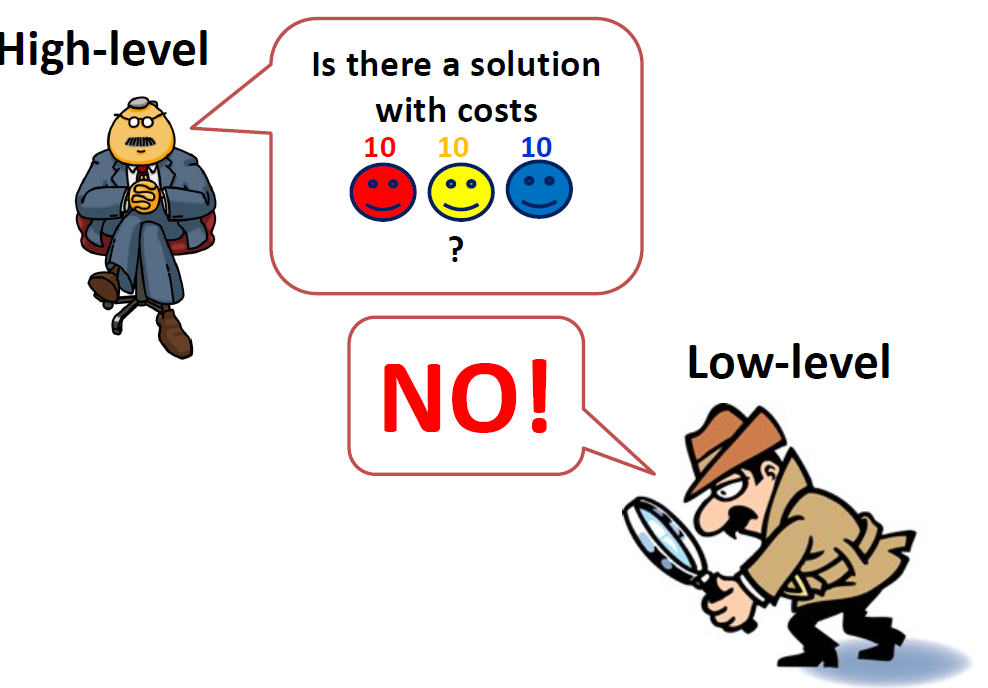

1. Increasing Cost Tree Search (Sharon et al. ‘12)

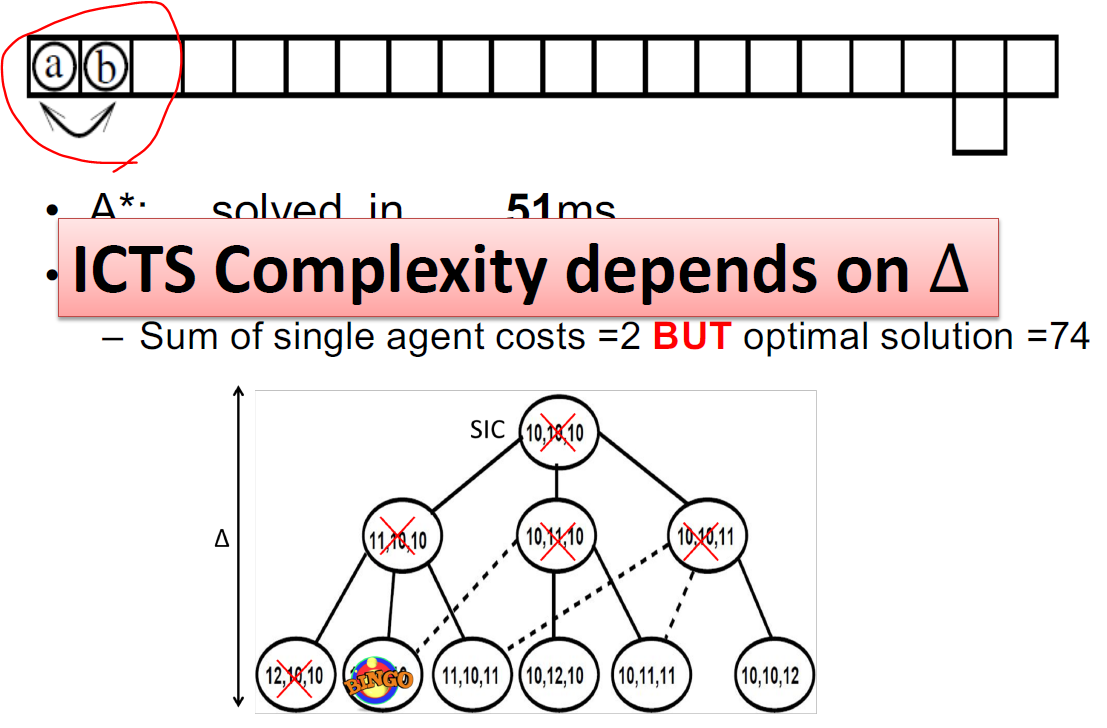

   • Does it work? - Not always
2. Conflict Based Search(CBS)
   • CBS only performs single agents(But, many times, and under different constraints)

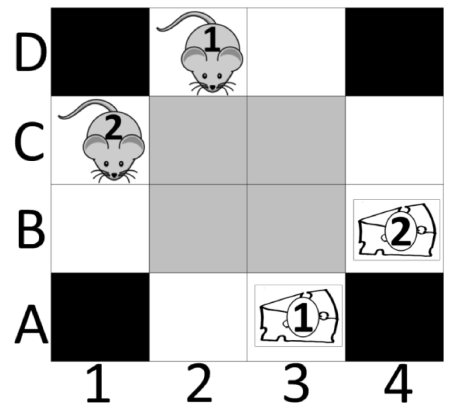

   • Conflict: agent 1 and agent 2, plan to occupy C at time 2
   • Constrain: agent 1, avoid C at time 2 or agent 2 to avoid C at time 2
   • The Constraint Tree
     • Nodes:
   • A set of individual constraints for each agent
   • a set of paths consistent with the constraints - Goal Test:
   • Are the paths conflict free

• Analysis: *Example 1**
  • How many states A* will expand?
  • How many states CBS will?

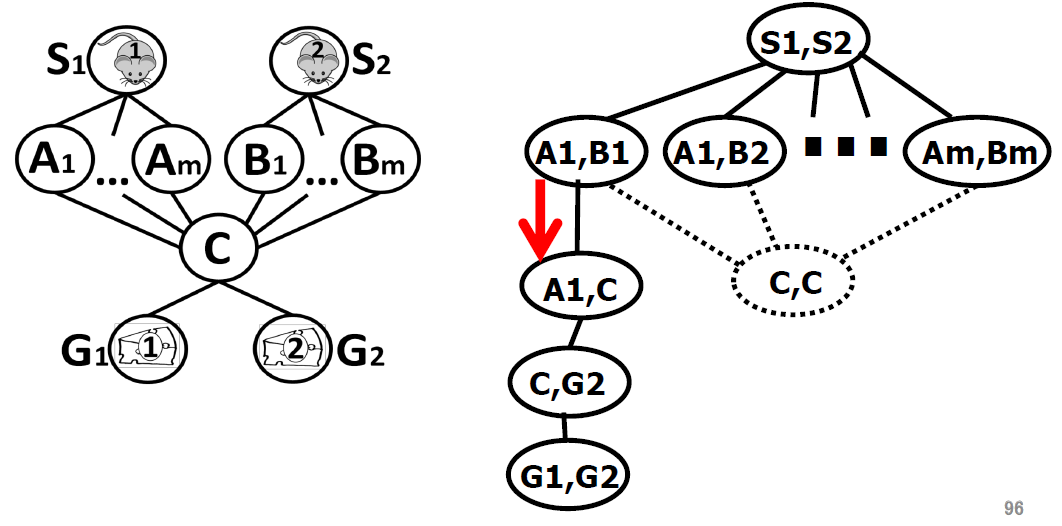

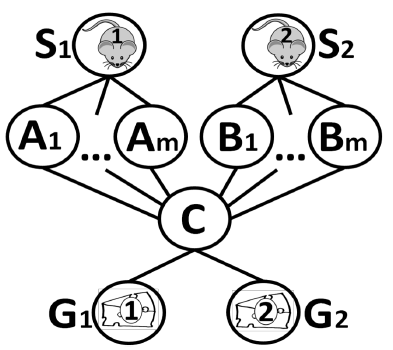

  • Motivation: case with bottlenecks:
  • A*
    • g+h=6: All $m^2$ combinations of ($A_i$,$B_j$) will be expanded
    • f=7 : 3 states are expanded
    • A* $m^2$ = O($m^2$)
    • CBS : 2m+14 = O(m) states
  • When m > 4 CBS will examine fewer states than A*
• Analysis: *Example 2**
  • States expanded by CBS?
  • States expanded by A*?
  • 4 optimal solutions for each agent
  • Each pair of solutions has a conflict
  • Rough analysis:
    • CBS: exponential in #conflicts = 54 states
    • A*: exponential in #agents = 8 states

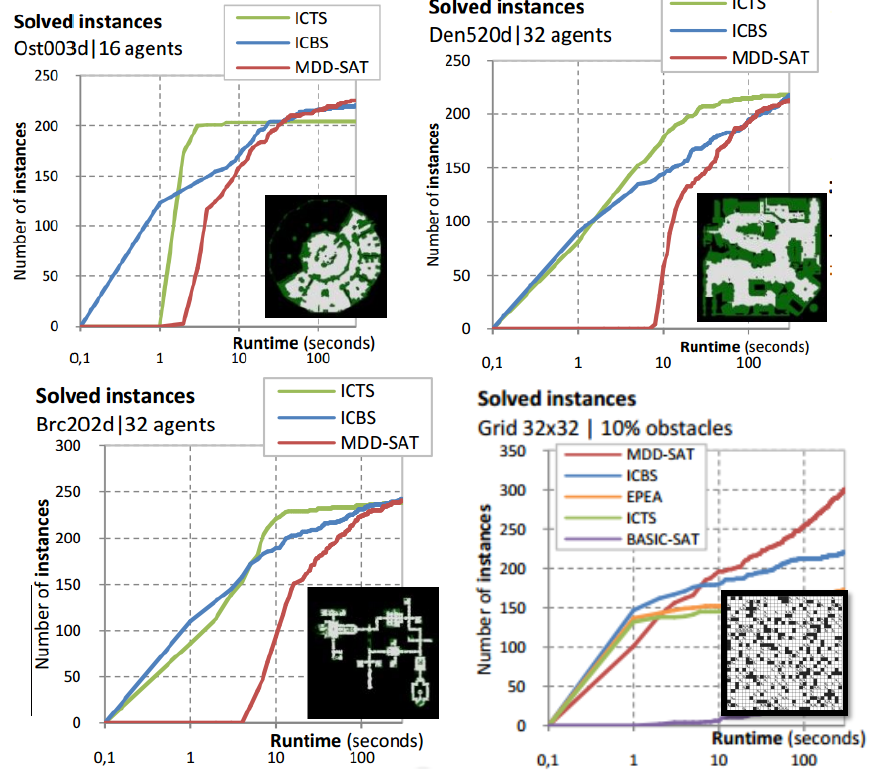

• Trends observed

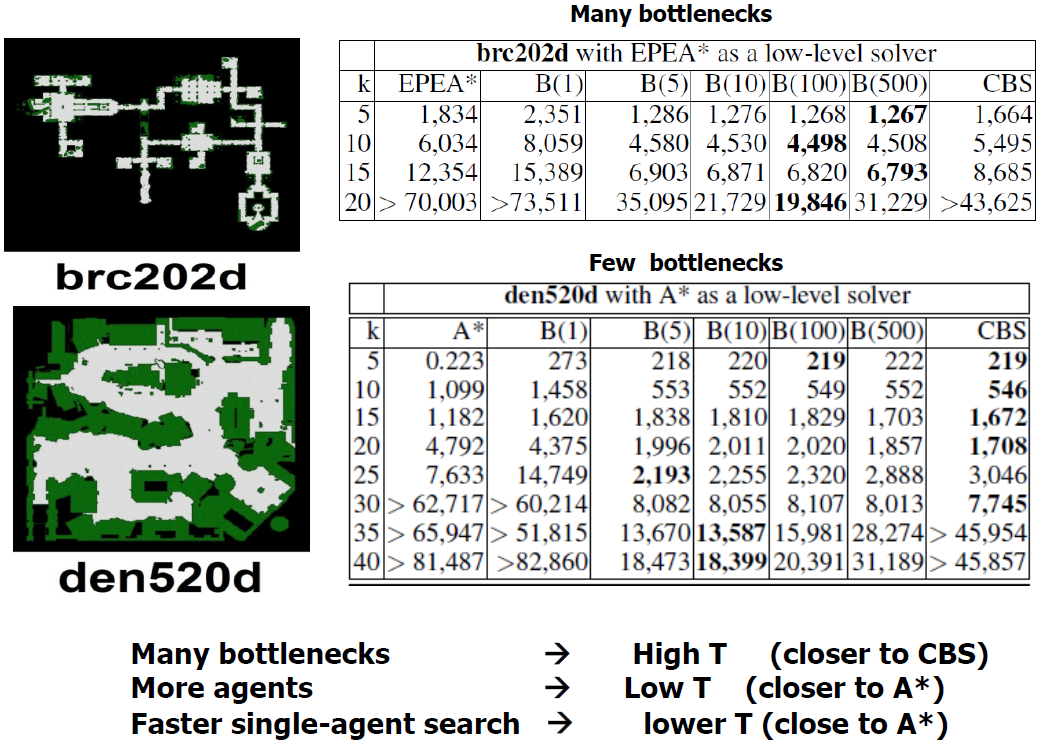

  • In open spaces: use A*
  • In bottlenecks: use CBS
• What if we have both?

Meta-Agent CBS (MA-CBS)

• Plan for each agent individually
• Validate(确证) plans
• If the plans of agents A and B conflict

  If (should merge(A,B))
  merge A and B into a meta-agent
  and solve with A*
  Else


• Constrain A to avoid the conflicts or Constrain B to avoid the conflict
• Should Merge(A,B) (simple rule):
  • Merge when observed more than T conflicts between A,B

CBS Enhancements

• Which conflict to resolve? [Boyarski et al. ‘16]
• What to do after merging? [Boyarski et al. ‘16]
• Heuristics for the constraint tree search [Felner et al. ‘18]
• Augmenting CBS with human knowledge [Cohen et al.]
• Which low-level solver to use?
• When to merge the agents ?

Summary

• A* (M, EPEA, A*+OD+ID)
  • Main factors: #agents, graph size, heuristic accuracy
• ICTS
  • Main factors: #agents, Δ, graph size
• CBS and its variants
  • Main factors: #conflicts

Solving MAPF

Bounded Suboptimal Algorithms

• An algorithm is bounded suboptimal iff
  • It accepts a parameter !
  • It outputs a solution whose cost is at most 1 + ! ⋅Optimal
• How to create a bounded suboptimal algorithm?
  • Different search algorithms
  • Inadmissible(不允许的) heuristics

Suboptimal ICTS

Suboptimal A*

Suboptimal M*

Suboptimal CBS

• Observation: Suboptimality can be introduced in both levels
  • ECBS (Barer et al. ‘14)
  • ECBS+Highways (Cohen et al. ’15, ‘16)

Advanced Issues in Search-based MAPF Algorithms

• When to use which algorithm? Ensembles(全体)?
• Using knowledge about past plans (Cohen et al. ’15)
• Stronger heuristics for all algorithms
• Deeper analysis of algorithms’ complexity
• Beyond grid worlds
  • Kinematic constraints (Ma et al. ‘16)
  • Any-angle planning (Yakovlev et al. ‘17)
  • Hierarchical environments (Walker et al. ’17)
  • Large agents (Li et al. ‘19)
• Priorized planning based on CBS (Ma et al. ‘19)
• Planning & execution

Reference: postassco
